Honda NSS300 Forza - Owner's Manual > Blown Fuse
Before handling fuses, see "Inspecting and Replacing Fuses".
Fuse Box 1 Fuses & Main Fuse 1
(NSS300A)
(NSS300)
1. Remove the battery cover.
2. Open the fuse box cover.
3. Pull the main fuse 1 and other fuses out with the fuse puller in the tool kit one by one and check for a blown fuse. Always replace a blown fuse with a spare of the same rating.
4. Install the parts in the reverse order of removal.
5. Close the seat.

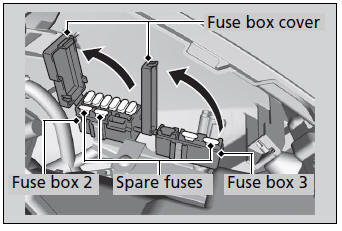

Fuse Box 2 & 3 Fuses
(NSS300A)
(NSS300)
Except U,KO type
U,KO type
1. Turn the handlebar fully to the left.
2. Remove the right front panel.
3. Open the fuse box covers.
4. Pull the fuses out with the fuse puller in the tool kit one by one and check for a blown fuse. Always replace a blown fuse with a spare of the same rating.
5. Install the parts in the reverse order of removal.
Main fuse 2
1. Remove the battery cover.
2. Disconnect the wire connector of the starter magnetic switch.
3. Pull the main fuse 2 out with the fuse puller in the tool kit and check for a blown fuse. Always replace a blown fuse with a spare of the same rating.
4. Install the parts in the reverse order of removal.
5. Close the seat.
NOTICE If a fuse fails repeatedly, you likely have an electrical problem. Have your scooter inspected by your dealer.
