Kawasaki J300 - Service manual > Headlight Aiming Inspection
The headlight beam is adjustable vertically.
- Inspect the headlight beam for aiming.
If necessary, adjust the headlight beam.
- Remove the front center cover (see Front Center Cover Removal in the Frame chapter).
- Adjust the headlight up or down by turning the adjuster.

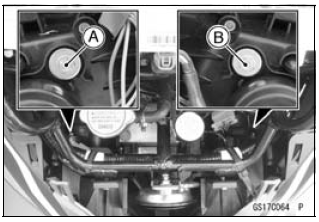

Right Headlight Adjuster [A]
Left Headlight Adjuster [B]
NOTE

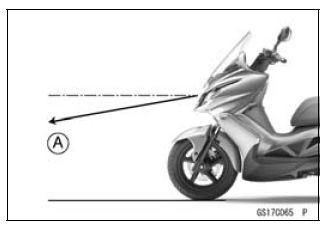

- On high beam, the brightest point [A] should be slightly below horizontal with the motorcycle on its wheels and the rider seated. Adjust the headlight to the proper angle according to local regulations.
Engine Stop Switch Operation Inspection
First Step
- Turn the ignition switch on.
- Set the motorcycle with the center stand.
- Put the side stand up.

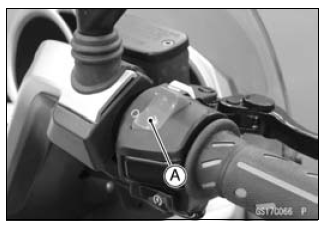

- Turn the engine stop switch to stop position [A].
- Push the starter button.
- The engine does not start.
If the engine starts, inspect or replace the engine stop switch (see Switch Inspection in the Electrical System chapter).
Second Step
- Turn the ignition switch on.
- Set the motorcycle with the center stand.
- Put the side stand up.

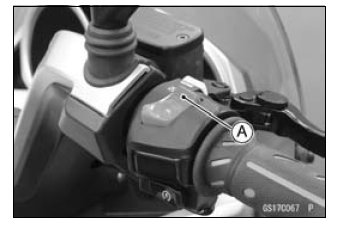

- Turn the engine stop switch to run position [A].
- Push the starter button and start the engine.
- Turn the engine stop switch to stop position.
- Immediately the engine should be stop.
If the engine does not stop, inspect or replace the engine stop switch (see Switch Inspection in the Electrical System chapter).
If the engine stop switch is good condition, replace the ECU (see ECU Removal/Installation in the Fuel System (DFI) chapter).
Spark Plug Replacement
- Disconnect the spark plug cap.

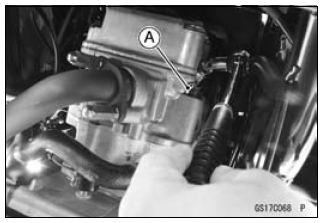

- Remove the spark plugs using the 16 mm (0.63 in.) plug wrench [A] vertically.
- Replace the spark plugs with new ones.
Standard Spark Plug
Type: NGK CR7E

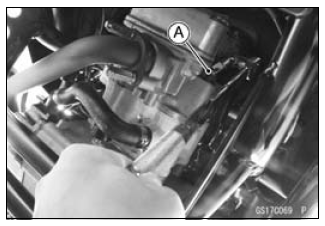

- Insert the spark plug vertically into the spark plug hole with the spark plug installed in the plug wrench [A], and finger-tighten it first.
NOTICE If tightening the spark plug with the wrench inclined, the insulator of the spark plug may break.
- Tighten:
Torque - Spark Plug: 12 N*m (1.2 kgf*m, 106 in*lb) - Install the spark plug cap.
- After installation, be sure the spark plug cap is installed securely by pulling up it lightly.
