Kymco XCITING 500 - Service Manual > Exhaust muffler

REMOVAL

Remove four screws and muffler protector.

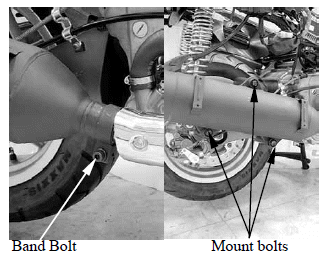

Loosen the exhaust pipe band bolt.

Remove three muffler mount bolts and muffler from the exhaust pipe.

Remove the exhaust pipe joint nuts and exhaust pipe.

Remove the gaskets.

INSTALLATION

Replace the gaskets with new ones.

Install the exhaust pipe and tighten the joint nuts.

Torque: 20 N*m (2 kgf*m, 14 lbf*ft)

Install the muffler and tighten the mount bolts.

Torque: 35 N*m (3.5 kgf*m, 25 lbf*ft)

Install and tighten the band bolts.

Torque: 21 N*m (2.1 kgf*m, 15 lbf*ft)
