Kawasaki J300 - Owner's Manual > Center Stand

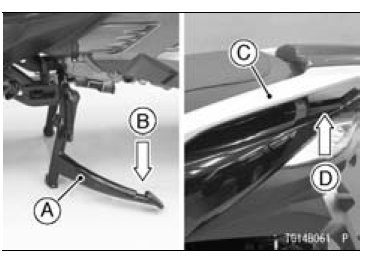

To set the center stand:

• Step down firmly on the stand, and then lift the motorcycle up and to the rear using the grab rail as a handhold.

NOTE

• Do not pull up on the seat to lift as this will damage the seat.

1. Center Stand
2. Step down.
3. Grab Rail
4. Lift up.

Helmet Hooks

Helmets can be secured to the motorcycle using the helmet hooks. The helmet hooks are located under the seat.

WARNING

Riding with helmets attached to the hooks could cause an accident by distracting the operator or interfering with normal vehicle operation. Do not ride the motorcycle with helmets attached to the hooks.

1. Helmet Hooks

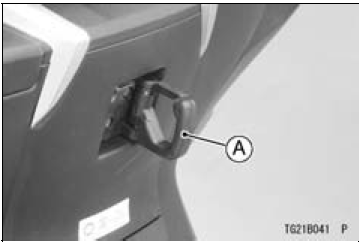

Convenience Hook

The convenience hook is located on the inner cover. The convenience hook is used to hang the light items.

NOTICE

Do not hang items more than 3 kg (6.6 lb) on convenience hook.

WARNING

Do not hang the big items that protrudes from the motorcycle or hits the foot. They could cause an accident by interfering with normal vehicle operation.

1. Convenience Hook
